Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

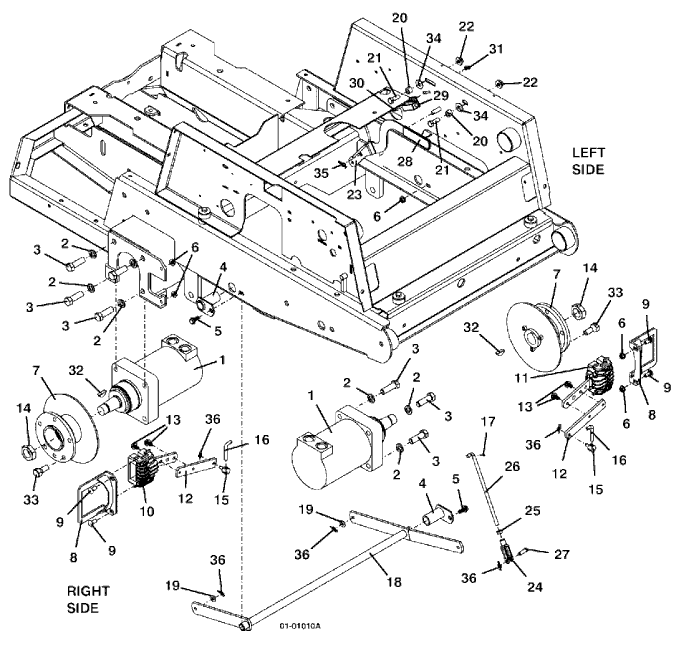

432 • Wheel Motor & Brake Assembly

2002

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

325/400 Wheel Motor with Hub

603610

2

Lock Washer

257442

3

Hex Bolt

243770

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

-

Socket Head Screw

259592

-

8.0 Brake Rotor

775192

8

Caliper Mount

644121

9

Carriage Bolt

247130

10

right Brake Assembly - counterclockwise Caliper

481101

-

Brake Pad Kit

603150

11

left Brake Assembly - clockwise Caliper

481100

-

Brake Pad Kit

603150

12

M1 400 Brake Linkage

782879

13

Whiz Bolt

253189

14

Nut

254522

15

Brake Linkage Pin

880924

16

928 Brake Linkage Rod

730155

17

Cotter Pin

260624

18

400S W/A Brake Tube

644174

19

Washer

257020

20

Spacer

902280

21

Hex Bolt

243330

22

Whiz Nut

253043

23

M1 Brake Lever

754055

24

Clevis Yoke

265537

25

Nut

254441

26

M1 Brake Rod

730358

27

Clevis Pin

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut

253020

32

Woodruff Key

281860

33

Lug Bolt

248565

34

Washer

257040

35

Cotter Ring

260608

36

Cotter Ring

260606

Return to 432 Index Return to Top
