Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

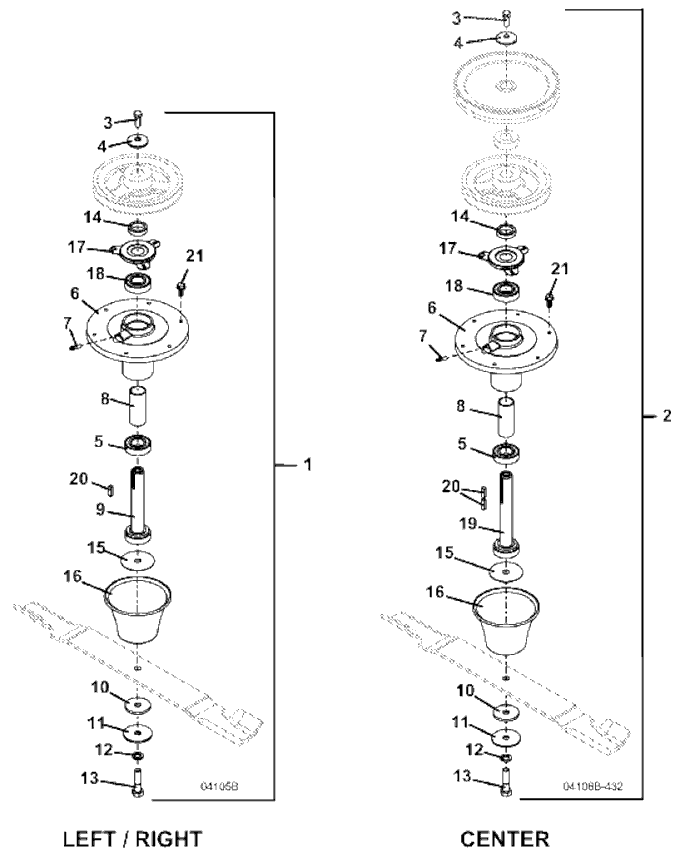

432 • Blade Spindle Assembly M172

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M172 Blade Spindle Assembly, Left & Right

623764

2

M172 Blade Spindle Assembly, Center

623765

3

Hex Bolt

243331

4

Cupped Washer

257041

5

Single Seal Ball Bearing

110082

6

Cast Spindle Housing

824151

7

Grease Fitting (Zerk)

280745

8

Deep Spindle Bearing Spacer

903643

9

98S Spindle Shaft Assembly

604774

10

Fiber Washer

421200

11

Washer

257061

12

Lock Washer

257432

13

Hex Bolt

243581

14

Spacer

282615

15

Washer

772061

16

Deflector Cone

423680

17

Bearing Shield

721167

18

25mm 2 Metal Seal Ball Bearing

110080

19

M1 Spindle Shaft Assembly

604773

20

Square Key

281582

21

Hex Flange Whiz Bolt

253192

Return to 432 Index Return to Top
