Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

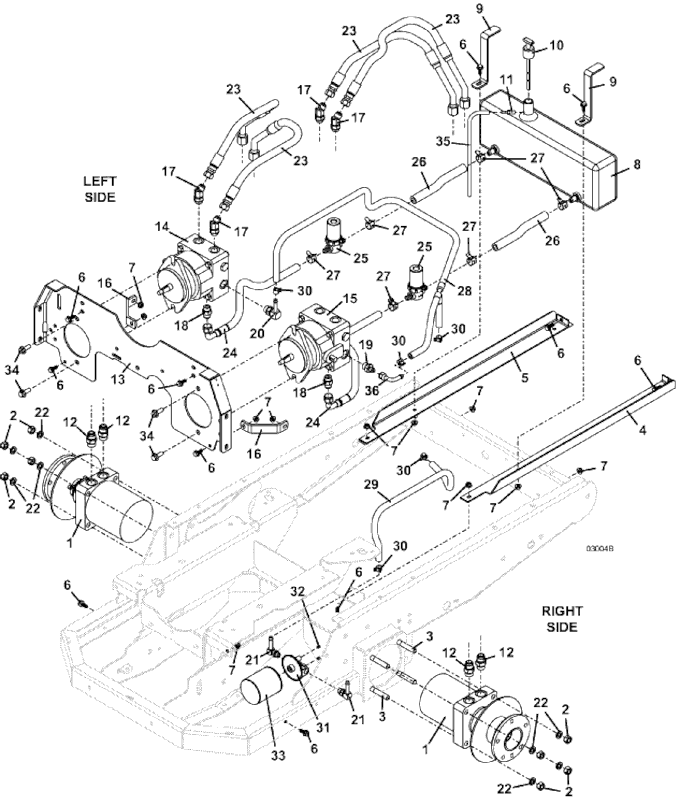

432 • Reservoir and Hose Assembly

2007

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Wheel Motor w/Hub

603604

2

Nut

254470

3

Pin Head Bolt Assembly

604160

4

400 Tank Rail - right

754092

5

400 Tank Rail - left

754093

6

Hex Flange Whiz Bolt

253192

7

Whiz Nut

253035

8

M1 325/400 Oil Reservoir Assembly

603606

-

Grommet

101875

-

Grommet

101880

-

Straight Fitting

360058

-

90 degree Fitting

363638

9

Oil Tank Strap

732557

10

M1 Oil Reservoir Dipstick

100728

11

Straight Barbed Fitting

363826

12

Adapter Fitting

360069

-

O Ring

126529

-

O Ring

126537

13

325/400 Pump Plate

644633

14

Hydro Pump - left

391452

15

Hydro Pump - right

391453

16

Pump Plate Rein Strap

732882

17

Adapter Fitting

360046

-

O-Ring

126527

-

O-Ring

126535

18

Steel O Ring Boss Fitting

363832

19

Flare O-Ring Adapter

360080

20

Adapter

360062

21

Adapter

360056

22

Lock Washer

257432

23

Hose Assembly w/Sleeve

424377

24

Hose Assembly

424321

25

In-Line Strainer

366553

26

Hydraulic Hose

821796

27

Spring Hose Clamp

280266

28

Hose Assembly

424315

29

Hydraulic Hose

821787

30

Spring Hose Clamp

280264

31

Filter Base - M1 Series

101024

32

Hex Whiz Bolt

253173

33

High-Efficiency Transaxle Oil Filter

100855

34

Hex Bolt

243570

35

Clear Vent Hose

821724

36

Fitting

363846
