Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

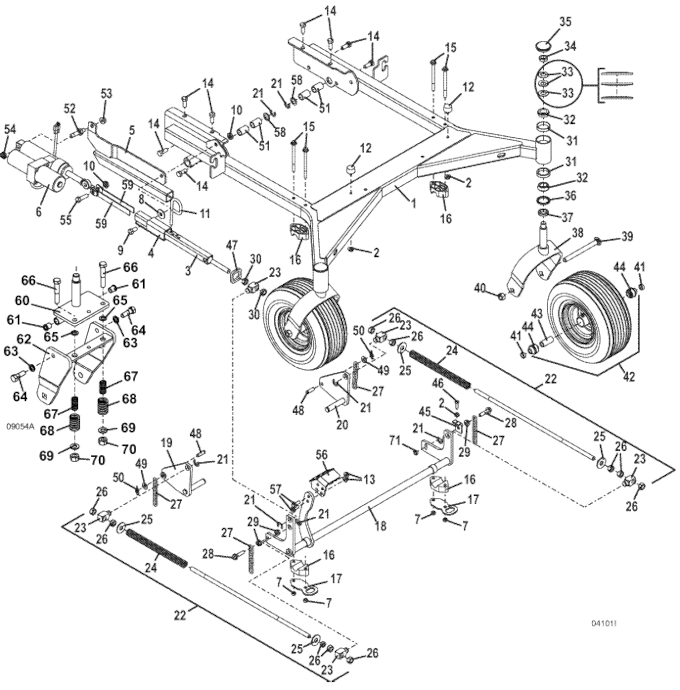

432 • Deck Carrier Assembly M172

2017

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Carrier - M1 72"

644135

-

M1 Cutting Height Decal

162187

2

Whiz Nut

253035

3

Adjustable Hydraulic Tube Weld

645145

4

Latch Tube Kyb Guide

644308

5

Hydro Adjust Kyb Cylinder Mount

644284

6

Kyb Hydro Pump Assembly

604429

7

Lock Nut

253890

8

Nylon Washer

821516

9

Hex Bolt .500-13 x 1

243560

10

Nylon Nut Insert

253470

11

Height Adjustment Deck Pin

730434

12

Rubber Bumper

424052

13

Whiz Nut

253043

14

Hex Bolt

243565

-

Flange Spiral Lock Nut

253067

15

Flange Bolt

253215

16

M1 Bearing Block

423643

17

Lift Bearing Plate

774064

18

M1 Deck Adjustable Lift Lever

644482

19

right Rear Deck Rocker - M1

644707

20

left Rear Deck Rocker - M1

644708

21

External Retainer

263529

22

M172 Rod & Spring Assembly

326108

23

Spring Rod Shaft Mount

882035

24

Compression Spring

283395

25

Washer

257080

26

Nut .625-11

254490

27

5 Links M1 Lift Chain

820331

28

GR 8 Hex Bolt

243458

29

Whiz Nut

253058

30

Nut

254493

31

Bearing Cup

123522

32

Taper Bearing

122522

33

Spring Washer

257320

34

Jam Nylon Toplock Nut

254505

35

Domed Dust Cap

481434

36

Seal

125855

37

Spacer

282615

38

Tailwheel Fork Tapered Bearing

645221

39

Carriage Bolt

247726

40

Lock Nut

253970

41

Axle Spacer

902422

42

Wheel Assembly with Bearings

603975

-

Ribbed Tire 13 x 6.50 x 6

482355

-

Wheel without Tire 6 x 4.5

483306

43

Axle Spacer

423750

44

Wheel Ball Bearing - .625 DP

120048

45

Adjusting Strap

732586

46

Hex Head Charge Cover Screw

243205

47

M1 Height Adjustment Spacer

423696

48

Clevis Pin

261405

49

Washer

257051

50

Cotter Ring

260612

51

Poly Bearing

422640

52

Kyb Cylinder Mount Pin Assembly

603626

53

Flange Nut

253065

54

Nylon Insert Nut

253470

55

Hex Bolt

243575

56

M1 Carrier Adj Foot Pedal

644467

57

Flange Whiz Bolt

253203

58

18 Gauge Bushing Washer

257092

59

Slide Stop

645144

60

Suspension Fork Yoke Pivot

643677

61

Oilite Bearing

121734

62

Fork Yoke Suspension

643313

63

Lock Washer

257442

64

Suspension Fork Pivot Bolt

887114

65

Washer

257063

66

Hex Bolt

243600

67

Compression Spring

283326

68

Compression Spring

283389

69

Washer

257062

70

Lock Nut

253930

71

Nut

254461
