Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

432 • Wheel Motor Assembly

2018

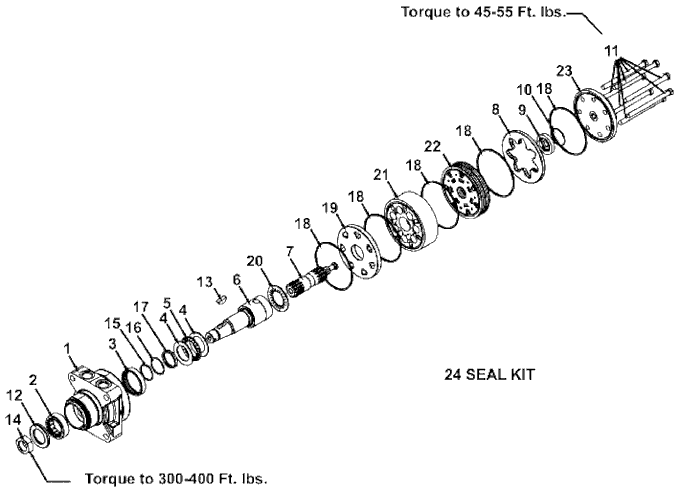

Wheel Motor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Return to 432 Index Return to Top

Item #

Description

Part Number

1

NOT AVAILABLE

000000

2

Outer Bearing

130370

3

Inner Bearing

130340

4

Thrust Washer

130346

5

Outer Thrust Bearing

130344

6

T6 Coupling Shaft

130311

7

Drive Link

130322

8

NOT AVAILABLE

000000

9

NOT AVAILABLE

000000

10

Commutator Seal

130312

11

NOT AVAILABLE

000000

12

Dirt & Water Seal

130315

13

Key

281860

14

Nut

254522

15

Backup Ring

130306

16

Backup Washer

130305

17

T6 Inner Shaft Seal

130341

18

Seal Ring

130386

19

Wear Plate

130330

20

Inner Thrust Bearing

130342

21

Rotor Set

130384

22

NOT AVAILABLE

000000

23

NOT AVAILABLE

000000

24

T6 Seal Kit

130385
