Genuine OEM Grasshopper® Mower Parts Diagrams

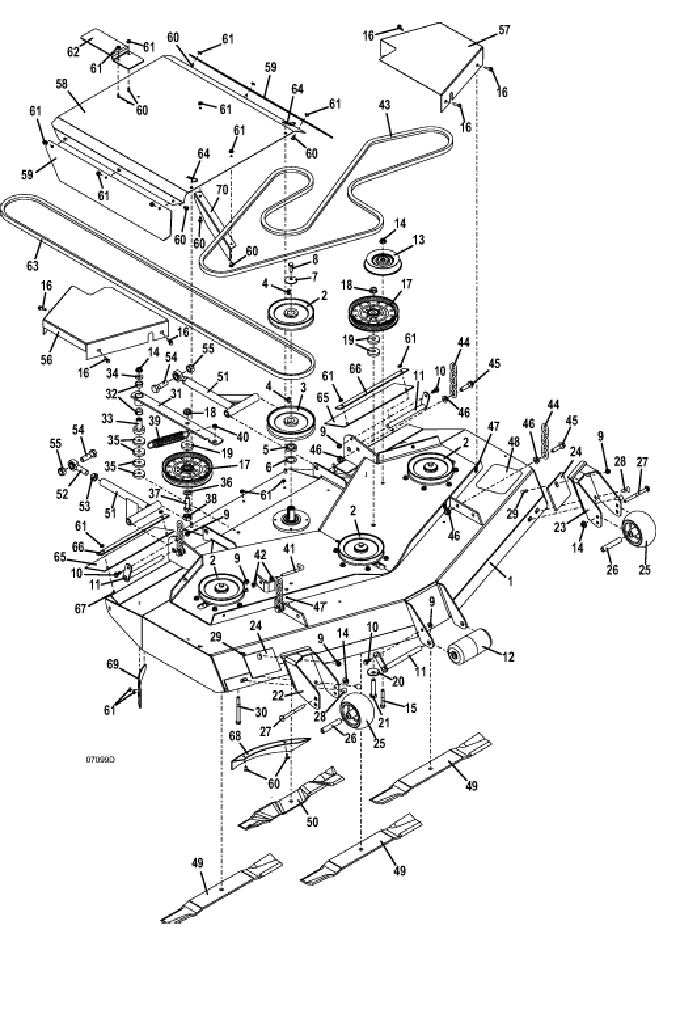

M1 Deck Assembly - M161R
2009
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M161R Deck |
645171 |
2 |
Sheave |
415892 |
3 |
Sheave (for 223,227,325D,329,329B, and 335B) |
831538 |
- |
Sheave for 322D and 430D |
831537 |
- |
Sheave for 432 |
831542 |
4 |
Square Key |
281580 |
5 |
Spacer |
282615 |
6 |
Washer |
257106 |
7 |
Cupped Washer |
257041 |
8 |
Hex Bolt |
243331 |
9 |
Whiz Nut |
253035 |
10 |
Hex Flange Bolt Whiz |
253192 |
11 |
Roller Lock Pin |
644512 |
12 |
Center 2 Piece Roller Assembly |
603725 |
13 |
Sheave - M152/61 RR Decks |
831432 |
14 |
Whiz Nut |
253043 |
15 |
Hex Bolt |
243355 |
16 |
Hex Bolt Whiz |
253175 |
17 |
Idler |
393250 |
18 |
Flange Spiral Lock Nut |
253067 |
19 |
Washer |
883804 |
20 |
Washer |
257059 |
21 |
Hex Bolt |
243590 |
22 |
Anti-Scalp Roller RT Mount |
643842 |
23 |
Anti-Scalp Roller LT Mount |
643695 |
24 |
Roller Spacer |
775068 |
25 |
Anti-Scalp Center Hub Wheel |
484230 |
26 |
Tube Bearing |
942137 |
27 |
Carriage Bolt |
247310 |
28 |
Carriage Bolt |
247135 |
29 |
Hex Flange Bot Whiz |
253193 |
30 |
Hex Bolt |
243385 |
31 |
Idler Arm - 9861 |
824487 |
32 |
Oilite Bearing |
121756 |
33 |
Pedestal Bearing |
121650 |
34 |
Washer |
257040 |
35 |
Washer |
257039 |
36 |
Washer |
257062 |
37 |
Hex Bolt |
243575 |
38 |
Idler Arm Stabilizer Cap |
423670 |
39 |
Extension Spring |
283848 |
40 |
Nylon Bearing |
422520 |
41 |
Idler Adjustment "J" Bolt |
730391 |
42 |
Nut |
254450 |
43 |
Belt |
382090 |
44 |
5 Links M1 Chain |
820331 |
45 |
Hex Bolt GR 8 |
243458 |
46 |
Nut Whiz |
253058 |
47 |
Speed Nut |
254431 |
48 |
Foot Rest Ext Tread |
420904 |
49 |
21 Med Lift Blade |
320242 |
50 |
18 Hi-Low Mulch Blade |
320240 |
51 |
Radius Arm M1 400 (includes items 52,53) |
604673 |
- |
Radius Arm Assembly M1 300 (NOT 300B)(includes items 52,53) |
604676 |
- |
Radius Arm Assembly M1 200 and 300B(includes items 52,53) |
604675 |
52 |
Rod End |
265665 |
53 |
Nut |
254493 |
54 |
Hex Bolt |
243810 |
55 |
Lock Nut |
253970 |
56 |
Mid 61 RT Belt Shield |
722451 |
57 |
Mid 61 LT Belt Shield |
722452 |
58 |
M1R Discharge Shield |
722880 |
59 |
Shield Side Flap |
424225 |
60 |
Bolt Whiz Truss |
253176 |
61 |
Nut Whiz |
253025 |
62 |
Shield Holder |
766015 |
63 |
Belt for 223,225, and 227 |
382080 |
- |
Belt for 329B and 335B |
382082 |
- |
Belt for 325D and 329 |
382083 |
- |
Belt for 322D |
382087 |
- |
Belt for 430D |
382088 |
- |
Belt for 432 |
382094 |
64 |
Hair Pin |
260523 |
65 |
M161R Deck Flap |
424219 |
66 |
M161R Flap Strap |
782348 |
67 |
Bolt Whiz Truss |
253177 |
68 |
M161R Bolt In Shroud |
645570 |
69 |
M161R Rear Shroud Extension |
855004 |
70 |
Discharge Shield Deflector |
722885 |
