1

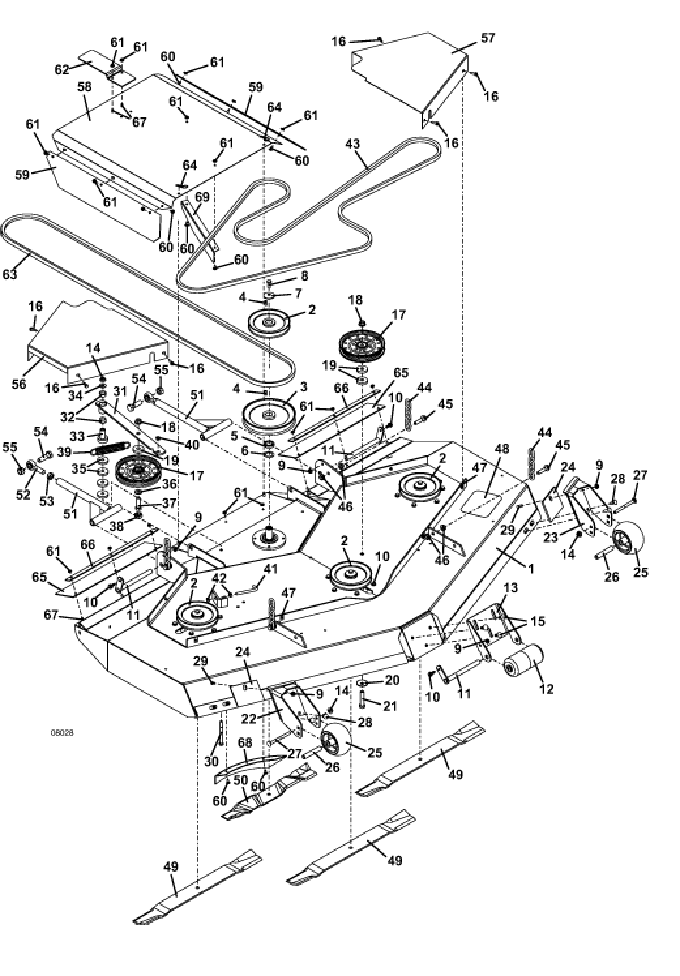

M172R Deck

645172

2

Sheave

415892

3

Sheave for 322D and 430D

831538

-

Sheave (for 227,325D,329,335B, and 432)

415908

4

Square Key

281580

5

Spacer

282615

6

Washer

257106

7

Cupped Washer

257041

8

Hex Bolt

243331

9

Whiz Nut

253035

10

Hex Flange Bolt Whiz

253192

11

Roller Lock Pin

644512

12

Center 2 Piece Roller Assembly

603725

13

Roller Mount

755071

14

Whiz Nut

253043

15

Carriage Bolt

247253

16

Hex Bolt Whiz

253175

17

Idler

393250

18

Flange Spiral Lock Nut

253067

19

Washer

883804

20

Washer

257059

21

Hex Bolt

243590

22

Anti-Scalp Roller RT Mount

643842

23

Anti-Scalp Roller LT Mount

643695

24

Roller Spacer

775068

25

Anti-Scalp Center Hub Wheel

484230

26

Tube Bearing

942137

27

Carriage Bolt

247310

28

Carriage Bolt

247135

29

Hex Flange Bot Whiz

253193

30

Hex Bolt

243385

31

Idler Arm - 9861

824487

32

Oilite Bearing

121756

33

Pedestal Bearing

121650

34

Washer

257040

35

Washer

257039

36

Washer

257062

37

Hex Bolt

243575

38

Idler Arm Stabilizer Cap

423670

39

Extension Spring

283848

40

Nylon Bearing

422520

41

Idler Adjustment "J" Bolt

730391

42

Nut

254450

43

Belt

382098

44

5 Links M1 Chain

820331

45

Hex Bolt GR 8

243458

46

Nut Whiz

253058

47

Speed Nut

254431

48

Foot Rest Ext Tread

420904

49

25 Med Lift Blade

320250

50

18 Hi-Low Mulch Blade

320240

51

Radius Arm M1 400(includes items 52,53)

604673

-

Radius Arm Assembly M1 200 and 300B(includes items 52,53)

604675

-

Radius Arm Assembly M1 300 (NOT 300B)(includes items 52,53)

604676

52

Rod End

265665

53

Nut

254493

54

Hex Bolt

243810

55

Lock Nut

253970

56

M1 72 RT Belt Shield

723330

57

M1 72 LT Belt Shield

723331

58

M1R Discharge Shield

722880

59

Shield Side Flap

424225

60

Bolt Whiz Truss

253176

61

Nut Whiz

253025

62

Shield Holder

766015

63

Belt for 227

382072

-

Belt for 432

382078

-

Belt for 335B

382081

-

Belt for 322D

382089

-

Belt 430D

382091

-

Belt 325D and 329

382092

64

Hair Pin

260523

65

M172R Deck Flap

424227

66

M172R Flap Strap

782355

67

Bolt Whiz Truss

253177

68

M161R Bolt In Shroud

645570

69

Discharge Shield Deflector

722885
