Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

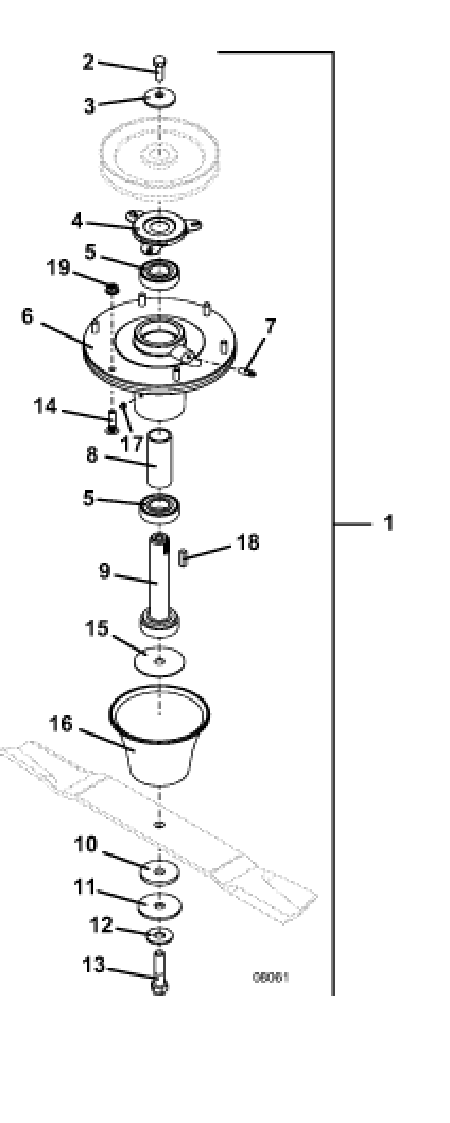

M1 • Blade Spindle Assembly M152 M161

2009

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spindle Assembly

623763

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Shield Bearing

721167

5

Ball Bearing

110081

6

Aluminum Spindle Housing Assembly

604413

7

Grease Fitting (Zerk)

280745

8

Deep Spindle Bearing Spacer

903643

9

Spindle Shaft Assembly 5.75

604775

10

Fiber Washer

421200

11

Washer

257061

12

Hardened Blade Spindle Washer

257057

13

Grade 8 Flange Hex Bolt

243583

14

Ribbed Neck Round Head Bolt

247141

15

Washer

772061

16

Deflector Cone

423680

17

Relief Plug

280705

18

Key Square

281580

19

Whiz Nut

253035
