Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

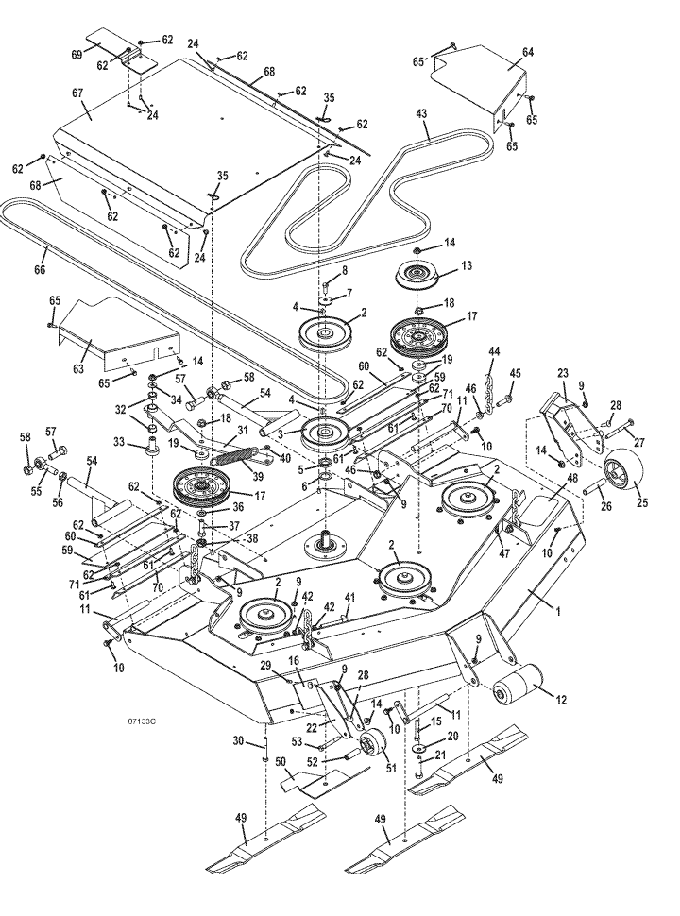

M1 Deck Assembly - M152R

2012

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M152R Deck

645170

2

Sheave

415892

3

Sheave

831537

4

Square Key

281580

5

Spacer

282615

6

Washer

257106

7

Cupped Washer

257041

8

Hex Bolt

243331

9

Whiz Nut

253035

10

Hex Flange Bolt Whiz

253192

11

Roller Lock Pin

644512

12

Center 2 Piece Roller Assembly

603725

13

Sheave - M152/61 RR Decks

831432

14

Whiz Nut

253043

15

Hex Bolt

243355

16

Roller RT Spacer

901355

17

Idler

393250

18

Flange Spiral Lock Nut

253067

19

Washer

883804

20

Washer

257059

21

Hex Bolt

243590

22

Bolt on Roller M152 RT Plate

754115

23

Bolt on Roller Plate - M152 RT

645579

24

Bolt Whiz Truss

253176

25

Anti-Scalp Center Hub Wheel

484230

26

Tube Bearing

942137

27

Carriage Bolt

247310

28

Carriage Bolt

247135

29

Hex Flange Bot Whiz

253193

30

Hex Bolt

243365

31

M152R Idler Arm

824465

32

Oilite Bearing

121756

33

Pedestal Bearing

121650

34

Washer

257040

35

Hair Pin

260523

36

Washer

257062

37

Hex Bolt

243575

38

Idler Arm Stabilizer Cap

423670

39

Extension Spring

283848

40

Nylon Bearing

422520

41

Idler Adjustment "J" Bolt

730391

42

Nut

254450

43

Belt

382084

44

5 Links M1 Chain

820331

45

Hex Bolt GR 8

243458

46

Nut Whiz

253058

47

Speed Nut

254431

48

Step Tread

420901

49

18 Med Lift Blade

320236

50

Grass Thrower

766025

51

Roller

426122

52

Roller Mount Spacer

902284

53

Hex Bolt

243365

54

Radius Arm Assembly M1 300 (NOT 300B)

604676

-

Radius Arm Assembly M1 200 and 300B

604675

55

Rod End

265665

56

Nut

254493

57

Hex Bolt

243810

58

Lock Nut

253970

59

M152R Deck Flap

424217

60

M152R Flap Strap

782344

61

Bolt Whiz Truss

253177

62

Nut Whiz

253025

63

52/220 RT Belt Shield

722333

64

52/220 LT Belt Shield

722334

65

Hex Bolt Whiz

253175

66

Belt for 321D

382076

-

Belt for 223, 225, and 227

382080

-

Belt for 329B

382082

-

Belt 329

382083

67

M1R Discharge Shield

645759

68

Side Shield Flaps

424225

69

Shield Holder

766015

70

Deflector

766080

71

Flap Extension

766083
