Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

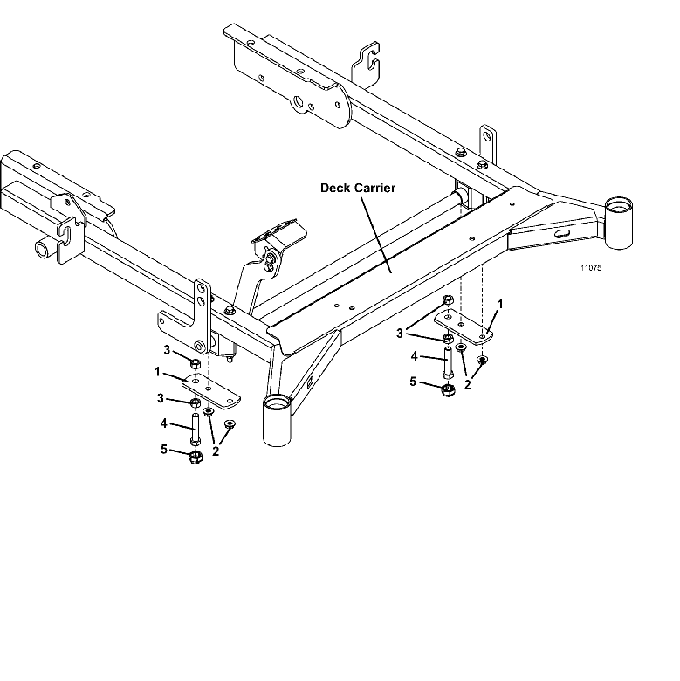

M1 • Deck Stop Brackets M148R, M152R, and M161R

2012

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Deck Stop Bracket

776137

2

Whiz Nut

253043

3

Nut

254470

4

Hex Bolt

243590

5

Idler Arm Stabilizer Cap

423670
