Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

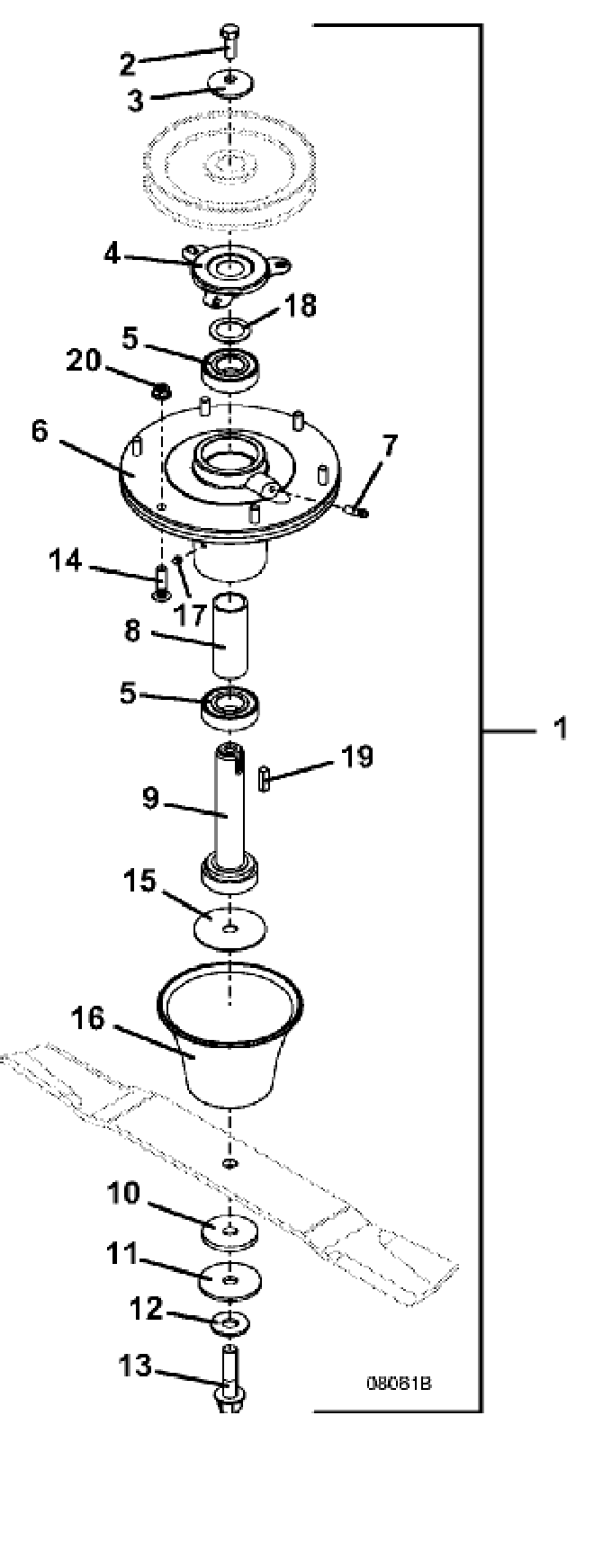

M1 • Blade Spindle Assembly M148R M152R M161R

2013

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Spindle Assembly

623763

2

Hex Bolt

243331

3

Cupped Washer

257041

4

Shield Bearing

721167

5

Ball Bearing

110081

6

Aluminum Spindle Housing Assembly

604413

7

Grease Fitting (Zerk)

280745

8

Deep Spindle Bearing Spacer

903643

9

Spindle Shaft Assembly 5.75

604775

10

Fiber Washer

421200

11

Washer

257061

12

Hardened Blade Spindle Washer

257057

13

Grade 8 Flange Hex Bolt

243583

14

Ribbed Neck Round Head Bolt

247141

15

Washer

772061

16

Deflector Cone

423680

17

Relief Plug

280705

18

Washer

257106

19

Key Square

281580

20

Whiz Nut

253035
