Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

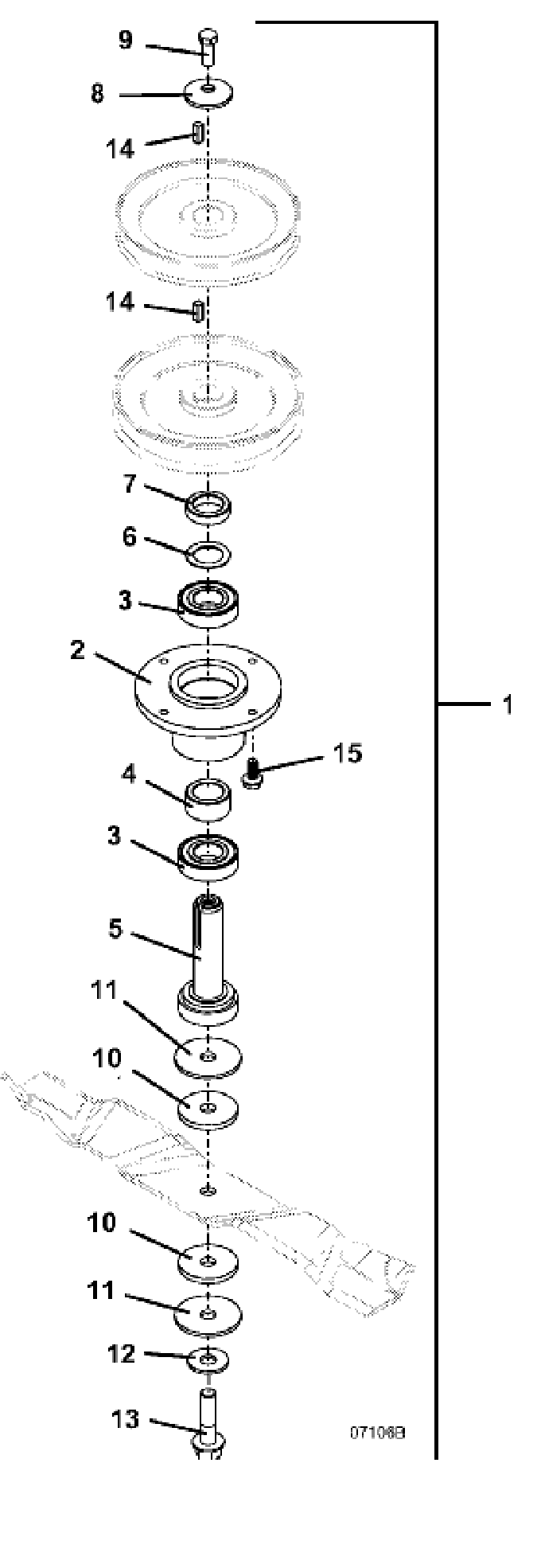

M1 • Blade Spindle Assembly

2015

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 Rear Blade Spindle Assembly

623758

2

M1R Decks Spindle Housing

320520

3

Ball Bearing

110080

4

Spacer

282630

5

Spindle Shaft Assembly

605770

6

Washer

257106

7

Spacer

282615

8

Cupped Washer

257041

9

Hex Bolt

243331

10

Fiber Washer

421200

11

Washer

257061

12

Hardened Blade Spindle Washer

257057

13

Grade 8 Flange Hex Bolt

243583

14

Key Square

281580

15

Hex Flange Bolt Whiz

253192
