Genuine OEM Grasshopper® Mower Parts Diagrams

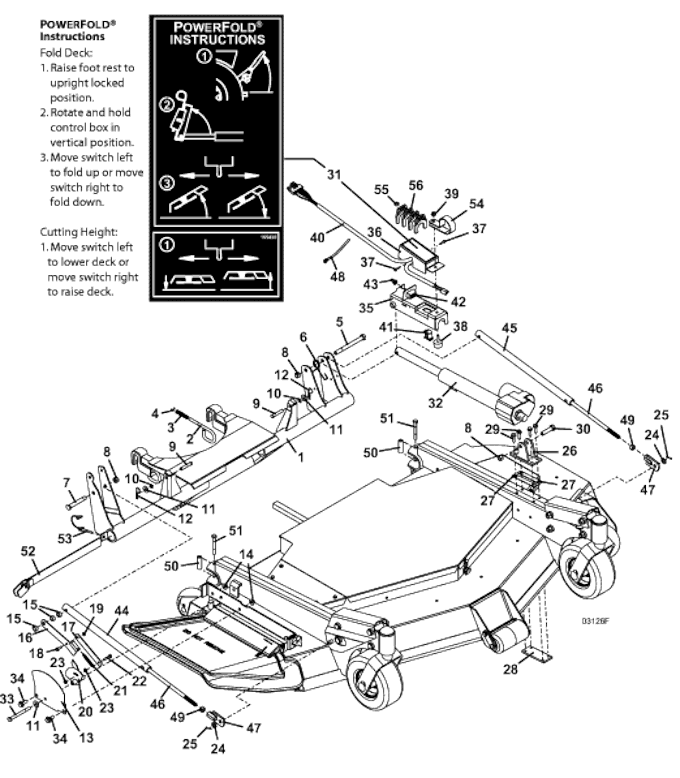

3452R Rear Discharge Front Mount Deck
Lift Arm with Optional Electric Powerfold Actuator
2010
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3452 Lift Arm Assembly |
604547 |
- |
3461 Lift Arm Assembly |
604549 |
2 |
Deck Mount Latch Pin |
730433 |
3 |
Compression Spring |
283285 |
4 |
External Retainer |
263490 |
5 |
Hex Bolt |
243635 |
6 |
Torsion Spring |
284423 |
7 |
Hex Bolt |
243609 |
8 |
Lock Nut |
253930 |
9 |
Clevis Pin |
261362 |
10 |
Push-On Retainer |
262950 |
11 |
Washer |
257040 |
12 |
Hair Pin |
260523 |
13 |
Cutting Height Decal Plate |
773141 |
- |
33/34 Series Cutting Height Decal |
162188 |
14 |
Whiz Nut |
253043 |
15 |
Actuator Stop Spacer |
902282 |
16 |
Electric Lift Indicator Linkage |
729332 |
17 |
Electric Lift Indicator Strap |
729331 |
18 |
Hex Bolt |
243018 |
19 |
Nylon Insert Nut |
253440 |
20 |
Electric Lift Height Indicator |
644319 |
21 |
Extension Spring |
283762 |
22 |
Hex Bolt |
243030 |
23 |
Whiz Nut |
253025 |
24 |
Washer |
257063 |
25 |
Cotter Pin |
260650 |
26 |
34 Electric Lift Actuator Mount |
644056 |
27 |
Electric Lift Actuator Mount Spacer |
900142 |
28 |
34 Actuator Threaded Plate |
776089 |
29 |
Hex Flange Whiz Bolt |
253193 |
30 |
Hex Bolt |
243580 |
31 |
Powerfold Pictorial Decal |
165430 |
32 |
12 volt Actuator |
180035 |
- |
Electric Motor |
182540 |
33 |
Hex Bolt with Shank |
243380 |
34 |
Flange Whiz Bolt |
253203 |
35 |
Electric Lift Switch Mount |
644805 |
36 |
Electric Lift Switch Shield |
722005 |
37 |
Hex Machine Screw |
250169 |
38 |
Bumper with Stud |
424056 |
39 |
Whiz Nut |
253035 |
40 |
Deck Tilt/Height Adjustment Wiring Assembly |
605965 |
41 |
Snap Mount Plunger SPST NC Switch |
183867 |
42 |
Toggle |
184084 |
- |
Toggle Switch Boot |
425200 |
- |
Keyed Washer |
770005 |
43 |
Toggle Switch Boot |
425200 |
44 |
3452 right Linkage |
644472 |
- |
Lift Linkage Tube - 3452 left / 3462 right |
644547 |
45 |
Lift Linkage Tube - 3452 left / 3462 right |
644547 |
- |
left Lift Linkage Tube - 3461 |
644548 |
46 |
3452 / 3461 Round Head Bolt |
243667 |
47 |
Lift Rod Bracket |
644068 |
48 |
Releasable Wire Tie |
423149 |
49 |
Nut |
254470 |
50 |
Roller Mount Spacer |
902284 |
51 |
Hex Bolt |
243365 |
- |
Lock Nut |
253890 |
52 |
Offset Traction Kit Tool |
643860 |
- |
Standard Traction Kit Tool |
783068 |
53 |
Linch Pin |
261624 |
54 |
Power Fold Height Adjustment Spacer Mount |
732315 |
55 |
.25 THK Spacer |
902297 |
56 |
Power Fold Height Adjustment Spacer |
423697 |
