Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

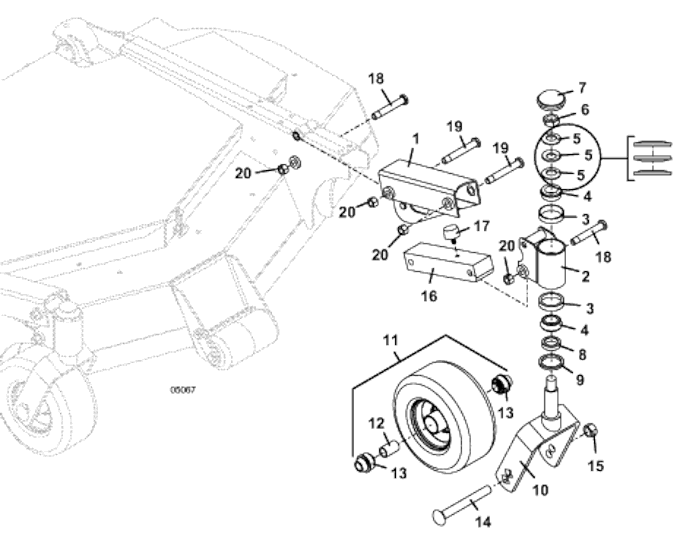

3452R Rear Discharge Front Mount Deck • Wheel Lift Assembly

2010

Wheel Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

33/34 Series Right Lift Channel

644461

-

33/34 Series Left Lift Channel

644462

2

Deck HD Fork Housing

824982

3

Bearing Cup

123522

4

Taper Bearing

122522

5

Spring Washer

257320

6

Nylon-Top Jam Lock Nut

254505

7

Domed Dust Cap

481434

8

Spacer

282615

9

Seal

125855

10

3452/3461 Fork & Lock Nut Assembly

604368

11

Semi-Pneumatic Wheel & Bearing Assembly 9 x 3.5 x 4

603973

12

Center Axle Spacer

902428

13

DP Wheel Ball Bearing

120048

14

Carriage Bolt

247715

15

Lock Nut

253970

16

Deck Stabilizer with Bumper

822312

17

Rubber Bumper

424053

18

Hex Bolt

243609

19

Hex Bolt

243614

20

Lock Nut

253930
