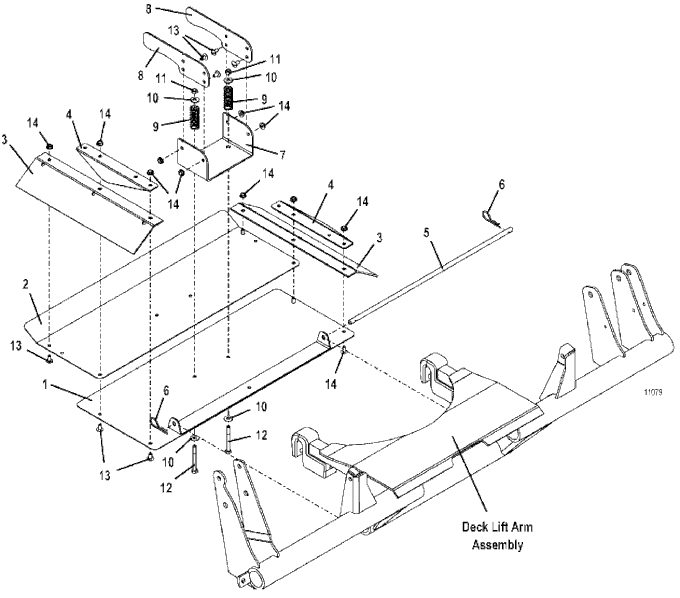

3452R Rear Discharge Deck • Discharge Shield Assembly
2013
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3552/61 Discharge Shield |
645763 |
2 |
35 Series Rear Discharge Shield |
722961 |
3 |
3552/61 Discharge Shield Flap |
424170 |
4 |
35 R Discharge Flap Support |
724972 |
5 |
Rear Discharge Shield Pin |
780425 |
6 |
Hair Pin |
260523 |
7 |
35 Series Short Shield Holder |
724764 |
8 |
Shield Support Arm Plate |
774346 |
9 |
Compression Spring |
283320 |
10 |
Washer |
257020 |
11 |
Nylon Insert Nut |
253440 |
12 |
Hex Bolt |
243050 |
13 |
Truss Whiz Bolt |
253176 |
14 |
Whiz Nut |
253025 |
