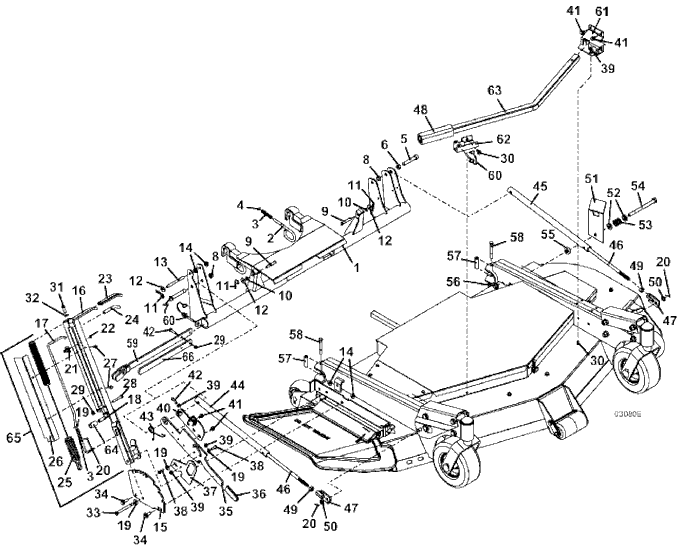

3452R Rear Discharge Deck • Lift Arm & Linkage Assembly

2013

Lift Arm Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3452 Lift Arm Assembly

604547

-

3461 Lift Arm Assembly

604549

2

Deck Mount Latch Pin

730433

3

Compression Spring

283285

4

External Retainer

263490

5

Socket Head Screw

259640

6

Actuator Stop Spacer

902282

7

Hex Bolt

243609

8

Lock Nut

253930

9

Clevis Pin

261362

10

Push-On Retainer

262950

11

Hair Pin

260523

12

Washer

257040

13

Drilled Stud

830037

14

Whiz Nut

253043

15

3461 Lever Mount

726036

-

33/34 Series Cutting Height Decal

162188

16

3452/3461 Lift Lever

824578

17

Lever Assist Rod

730375

18

Lift Lever Bolt Sleeve

902273

19

Washer

257030

20

Cotter Pin

260650

21

Rod Retainer

423110

22

#8 Screw

252041

23

Handle Grip

422155

24

Handle Grip

422158

25

Lift Assist Spring Assembly

604518

26

Lever Assist Spring Shield

722716

27

Hex Whiz Bolt

253173

28

Hex Bolt

243225

29

Nylon Insert Nut

253450

30

Hex Flange Whiz Bolt

253192

31

Hex Bolt

243330

32

Lock Washer

257412

33

Hex Bolt with Shank

243380

34

Flange Whiz Bolt

253203

35

33 Series F/A Lift Connecting Arm

824174

36

Black Handle Grip

422153

37

L48 Latch Connecting Arm

783063

38

Shoulder Bolt

259722

39

Whiz Nut

253035

40

Lift Linkage Adjustment Bracket

824566

41

Whiz Bolt

253189

42

Hex Bolt

243205

43

Torsion Spring

284423

44

3452 right Linkage

644472

-

Lift Linkage Tube - 3452 left / 3462 right

644547

45

Lift Linkage Tube - 3452 left / 3462 right

644547

-

left Lift Linkage Tube - 3461

644548

46

3452 / 3461 Round Head Bolt
(for decks with serial number 5541833 and above)
NOTE: Order this part if your bolt measures 12"

243667

47

Lift Rod Bracket

644068

48

Foam Grip

422177

49

Nut

254470

50

Washer

257063

51

3452 / 3461 Deck Latch

729237

52

Washer

257067

53

Compression Spring

283332

54

Hex Bolt

243640

55

Tilt Latch Spacer

902292

56

Spiral Flange Lock Nut

253067

57

Roller Mount Spacer

902284

58

Hex Bolt

243365

-

Lock Nut

253890

59

Offset Tool Traction Kit

643944

-

Traction Kit Lever Assembly

604843

60

Linch Pin

261624

61

Lift Assist Bar Bracket

644060

62

Lift Bar Mount Bracket

729330

63

3452 Lift Bar

944050

-

3461 Lift Bar

944055

64

Lift Lever Bolt Outer Sleeve

942158

65

3452 / 3461 Lift Lever Assembly

606521

66

Traction Kit External Lever

782979

Return to 3452R Index Return to Top
