Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

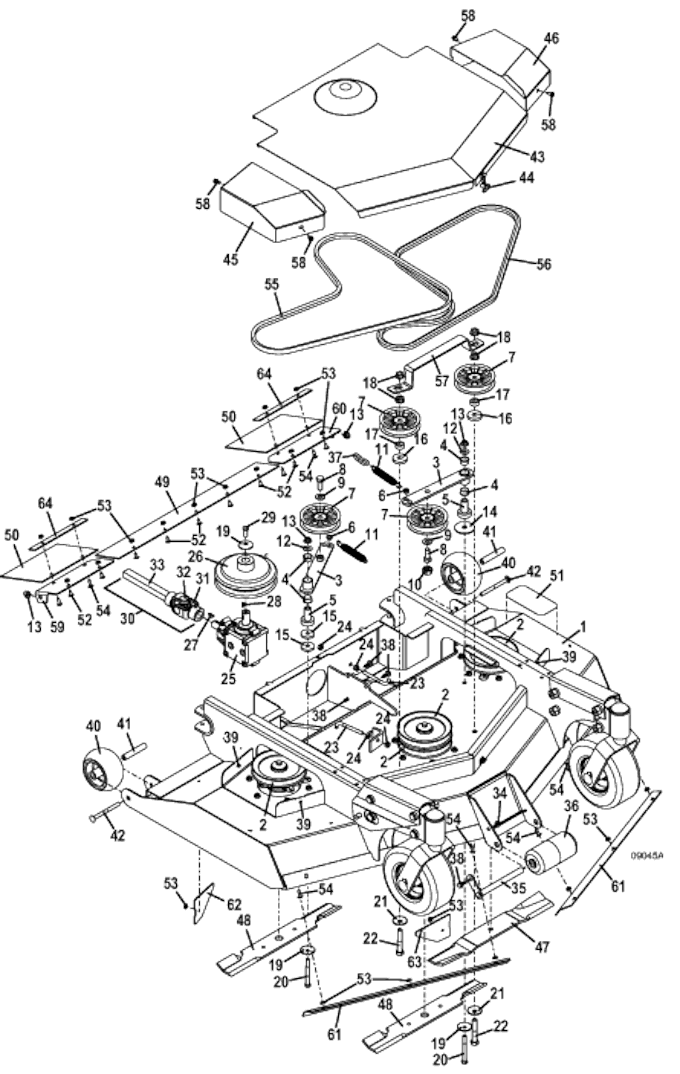

3552R Rear Discharge Deck • Mower Assembly

2010

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3552R Deck

645250

2

Sheave

415892

3

Idler Arm with Bearing & Pedestal

824502

4

Oilite Bearing

121756

5

Pedestal Bearing

121650

6

Nylon Bearing

422520

7

Idler

393225

8

Hex Bolt

243565

9

Washer

257062

10

Idler Arm with Stabilizer Cap

423670

11

Spring Extension with Swivel

283820

12

Washer

257040

13

Whiz Nut

253043

14

Washer

257061

15

Washer

883801

16

Washer

883804

17

Spacer

902313

18

Spiral Lock Flange Nut

253067

19

Cupped Washer

257041

20

Hex Bolt

243375

21

Washer

257059

22

Hex Bolt

243600

23

Idler Adjustment J Bolt

730391

24

Nut

254450

25

Right Angle Clockwise Gearbox

390019

26

Sheave

415915

27

Woodruff Key

281833

28

Woodruff Key

281828

29

Hex Bolt

243331

30

UN Half Shaft

398528

31

Yoke

401010

32

Cross & Bearing

121010

33

Yoke & Shaft

402608

34

Whiz Nut

253035

35

Roller Lock Pin

644512

36

2 Piece Center Roller Assembly

603725

37

2 Link Chain

820316

38

Hex Flange Whiz Bolt

253192

39

Speed Nut

254431

40

Center Hub Anti Scalp Wheel

484230

41

Bearing Tube

942137

42

Carriage Bolt

247310

43

3552 Center Shield Assembly

604859

44

Rubber Draw Latch

281300

45

3561 Right Belt Shield

722898

46

3561 Left Belt Shield

722899

47

18" Medium Lift Blade

320236

48

18" Medium Notch Lift CCW Blade

320280

49

3552 Center Deck Flap

424168

50

3552 Right/Left Deck Flap

424169

51

Step Tread

420901

52

Truss Whiz Bolt

253176

53

Whiz Nut

253025

54

Truss Whiz Bolt

253177

55

Belt

382845

56

Belt

382153

57

Deck Shield Support Bracket

732605

58

Hex Whiz Bolt

253173

59

3552 Right Rear Extension Bracket

729482

60

3552 Left Rear Extension Bracket

729483

61

6852/M152 Air Dam

754102

62

3552 Right Shroud Extension Bracket

774186

63

3552 Left Shroud Extension Bracket

774187

64

3552 Right/Left Flap Strap

782352

65

Decal Set 3552/3561

605407

Return to 3552R Index Return to Top
